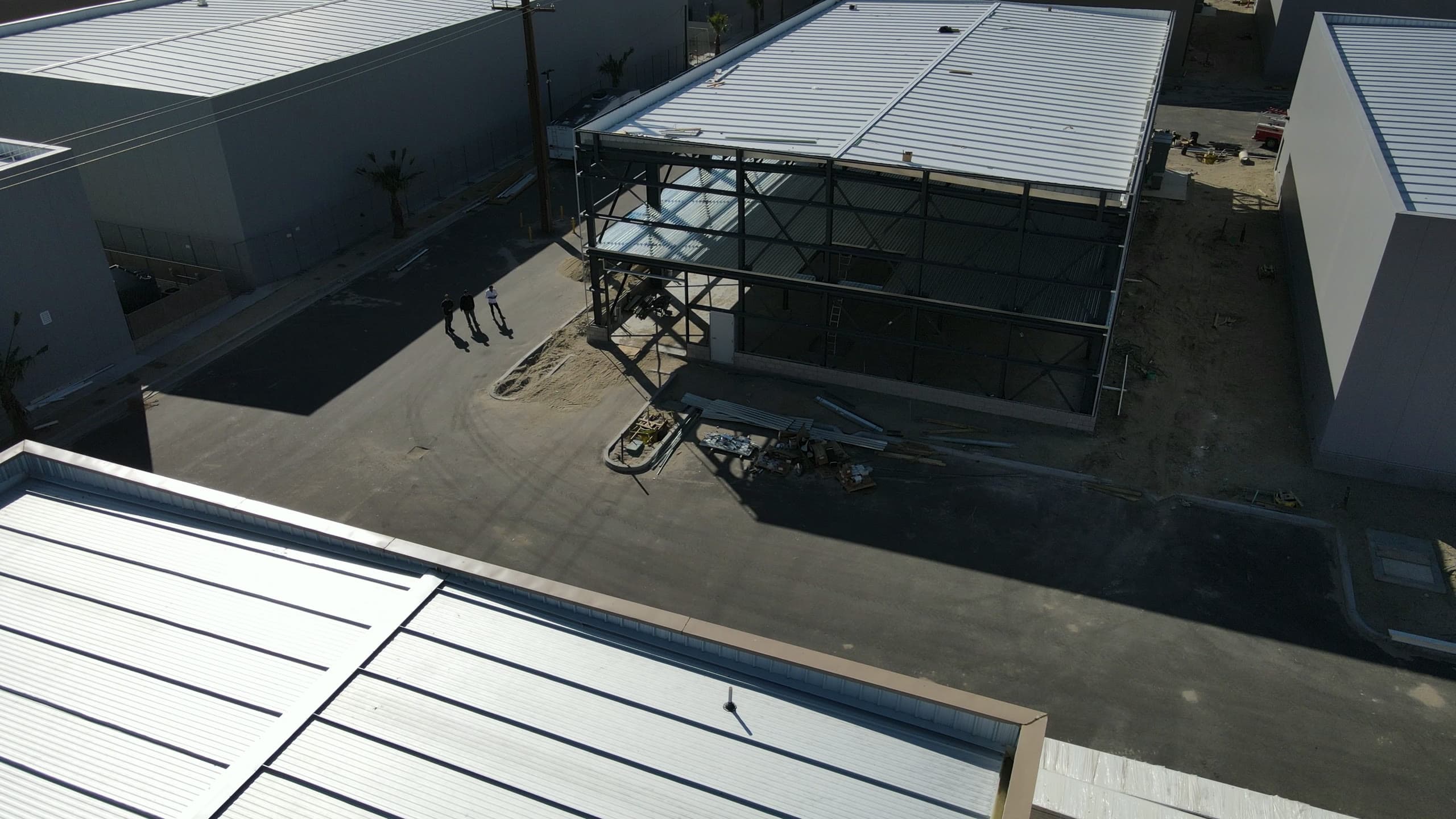

Two-story steel building frame with white roof panels over the far bays, three people walking the paved drive below, and finished metal buildings on either side.

Light Industrial · Desert Hot Springs, CA · 2021

Morongo Industrial Park

Structural Systems site footage

Steel light-industrial buildings in Desert Hot Springs, documented from open footings to finished standing-seam roofs.

In February 2021 a Desert Hot Springs industrial campus was running in three phases at once, and Joseph Gonzalez's drone footage from a job he worked there catches all of them in one flight. This is production building at campus scale. Every pad repeats the same foundation, frame, and skin.

Type
Light industrial
Filmed
February 2021
Structure
Steel frame on pad footings
Envelope
Insulated metal panel
Roof
Standing-seam metal

A grid of footings

Steel buildings put their loads down at points, so each pad starts as a grid of square footings cut into the sand, linked by perimeter trenches. Workers tie rebar mats at the bottom of the open excavations while plumbing stubs wait in rows for the pours. All of it sits inside a finished block-and-iron frontage wall, street landscaping already in.

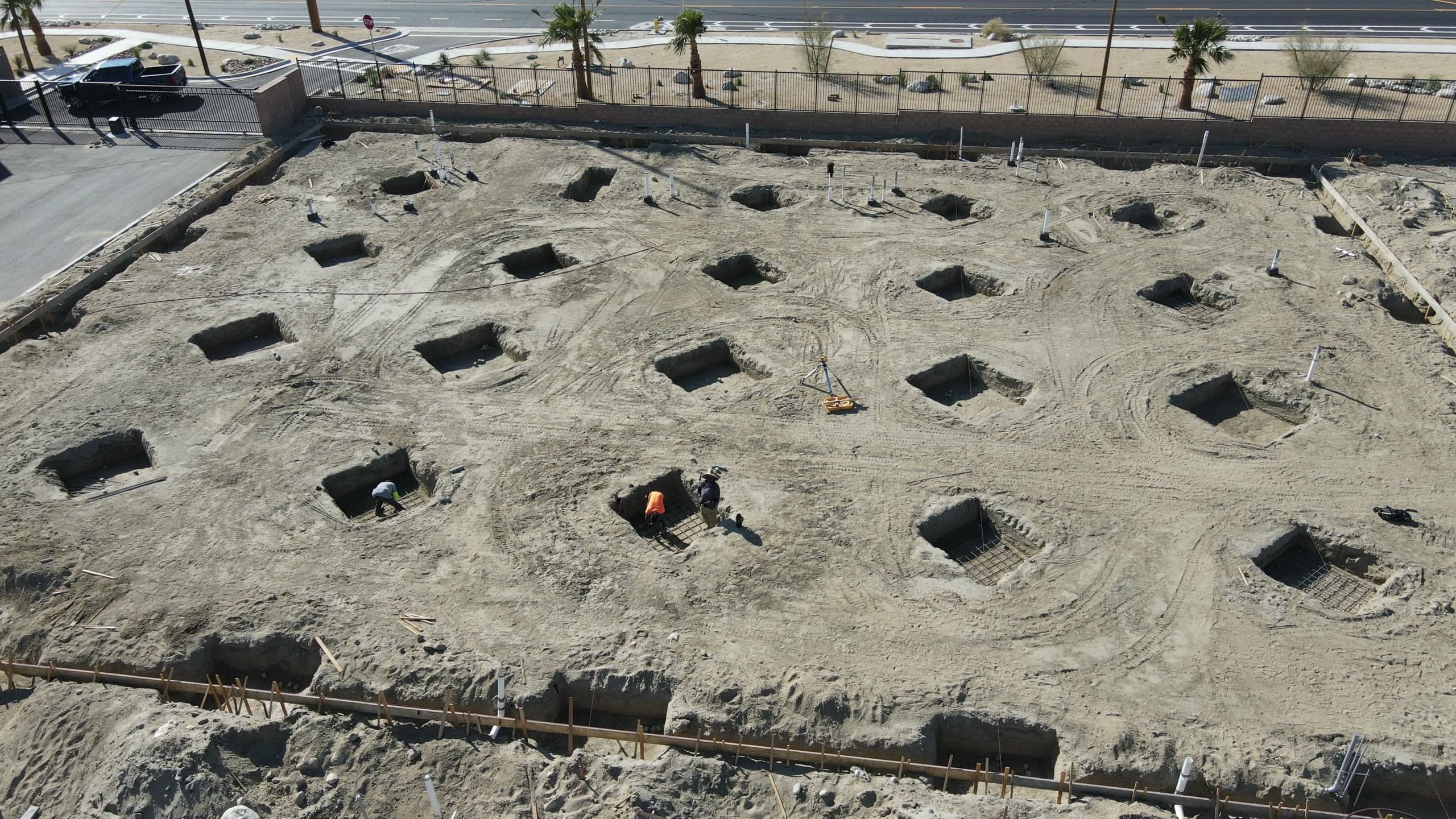

Grid of square excavated footings across a sand pad, workers tying rebar mats in two of them, white plumbing stubs in rows, and a block wall with iron fencing and palms along the street.
Structural Systems site footage

Steel up, roof on

Bay by bay the frames take purlins, then panel, then roof. Finished, the building is one clean skin: long runs of white standing-seam over insulated metal walls, the insulation and the weather surface hung in one pass. In the desert the white roof is there to throw back heat, not for looks.

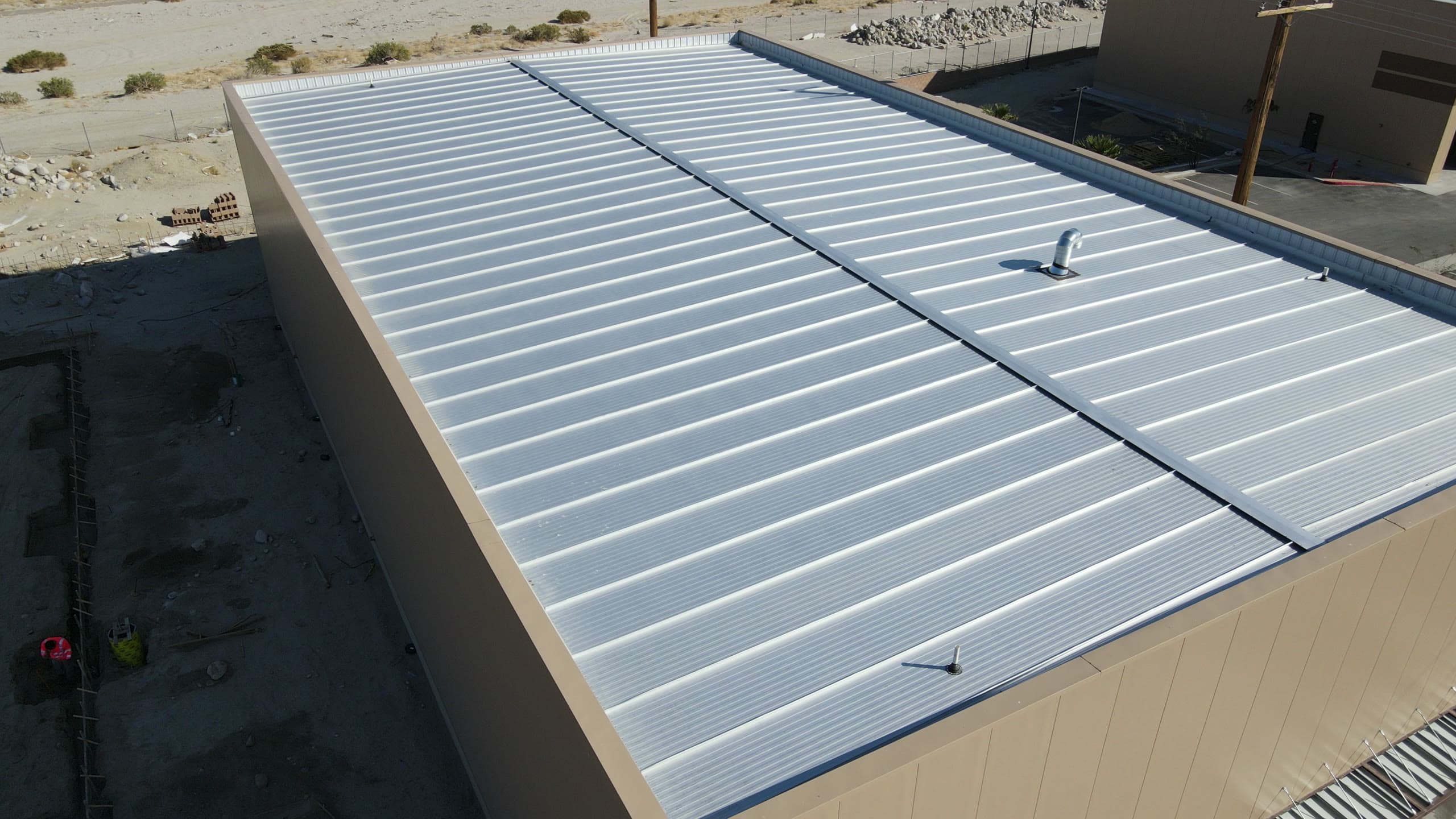

Finished white standing-seam metal roof with a plumbing vent, over tan insulated panel walls, with the neighboring building's paved yard and a utility pole beyond the parapet.
Structural Systems site footage

Finished neighbors, open pads

A phased campus means working beside neighbors that are already finished. Between pads sit laydown yards of panel, steel, and formwork, and a skid steer works grade between them, with fresh curb and gutter framing the lot edge.

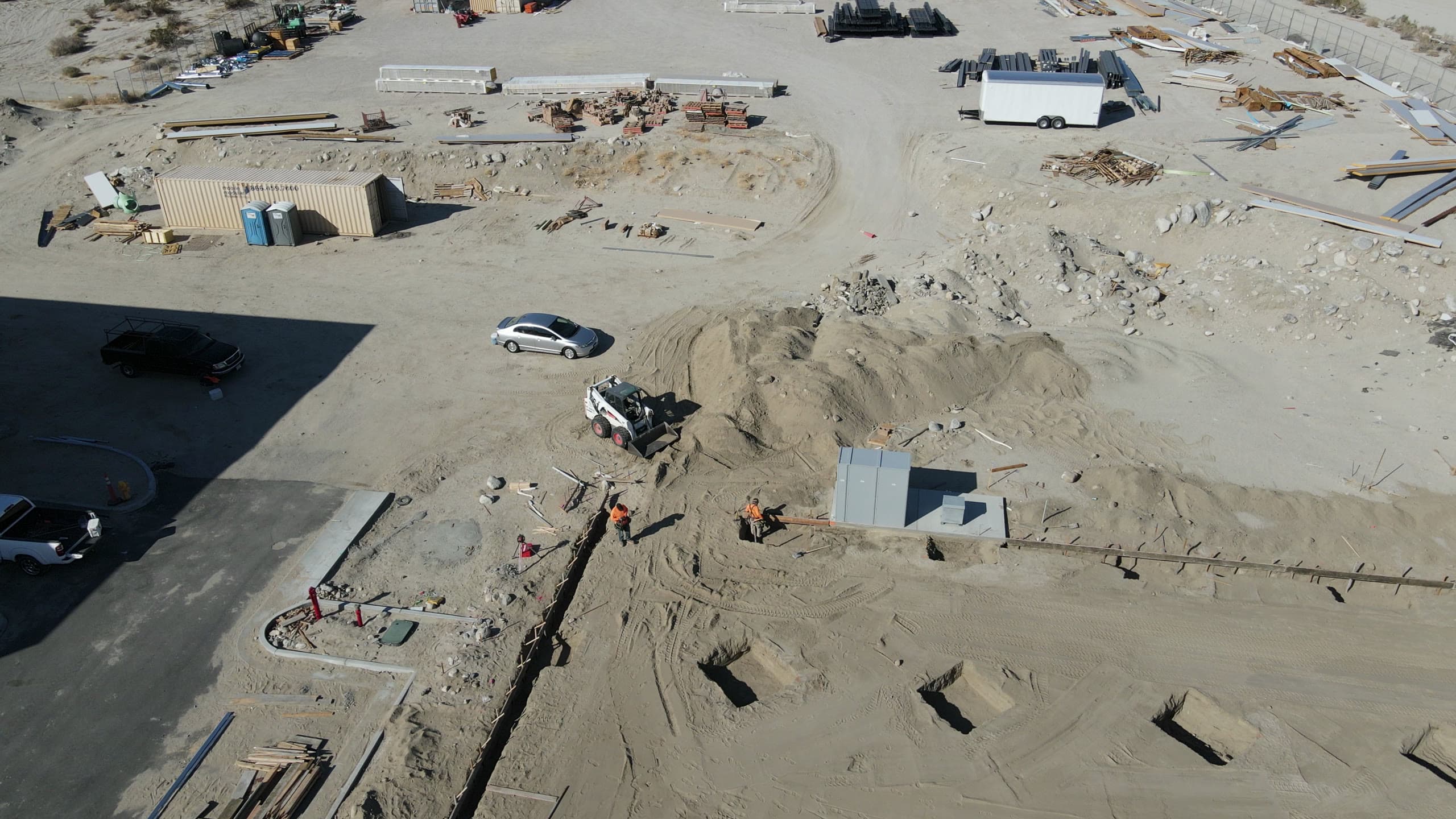

Laydown yard between pads: storage container, portable toilets, stacked steel and formwork, a skid steer moving sand in the yard, new curb and gutter along the lot edge, and workers along a utility trench.
Structural Systems site footage

Over the park

February 2021 · Structural Systems site footage

From the footage

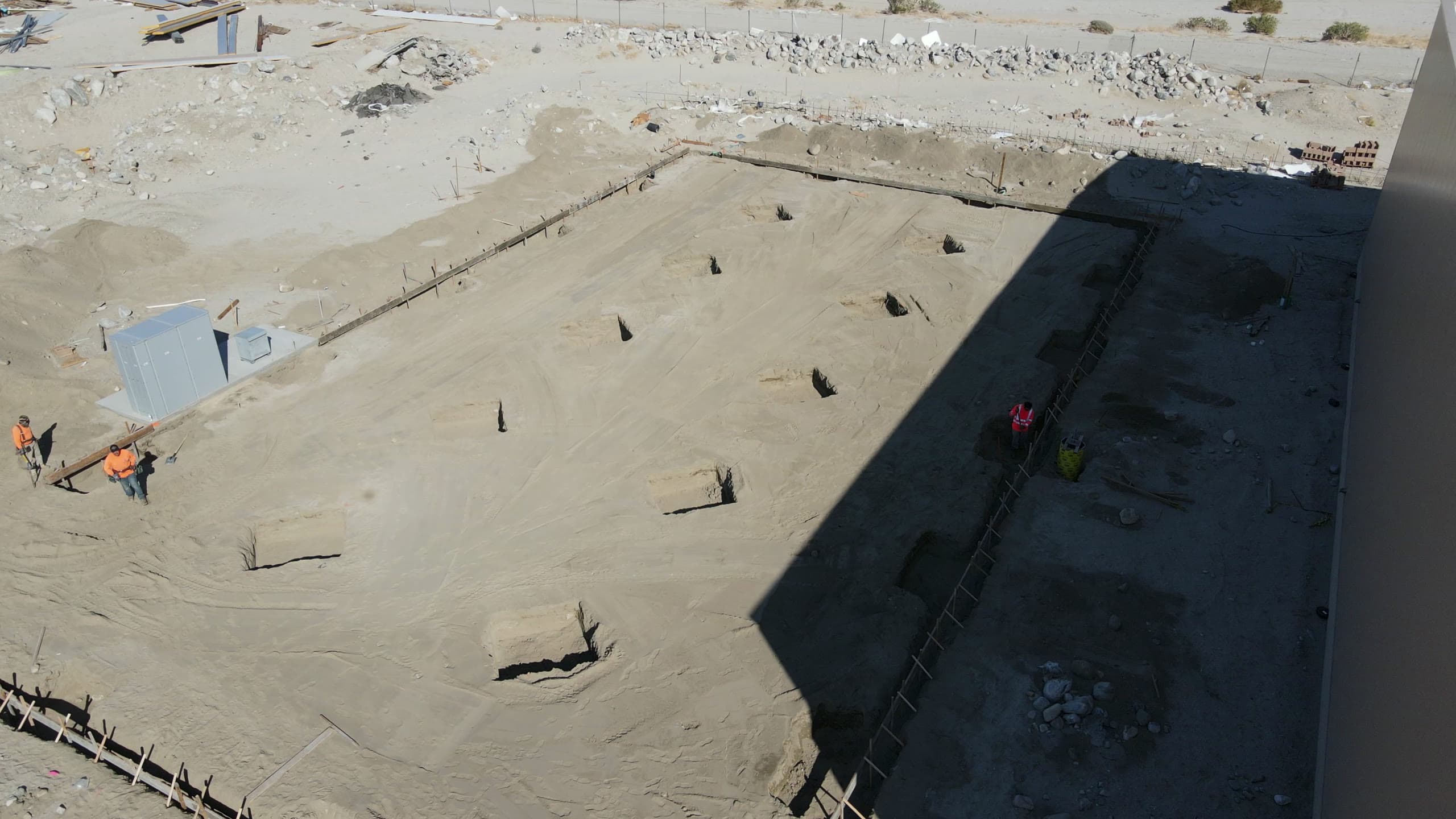

Excavation phase beside a finished building: square footings and a perimeter trench cut into the pad, workers moving material at the edge and another in the shadowed trench line.
Structural Systems site footage

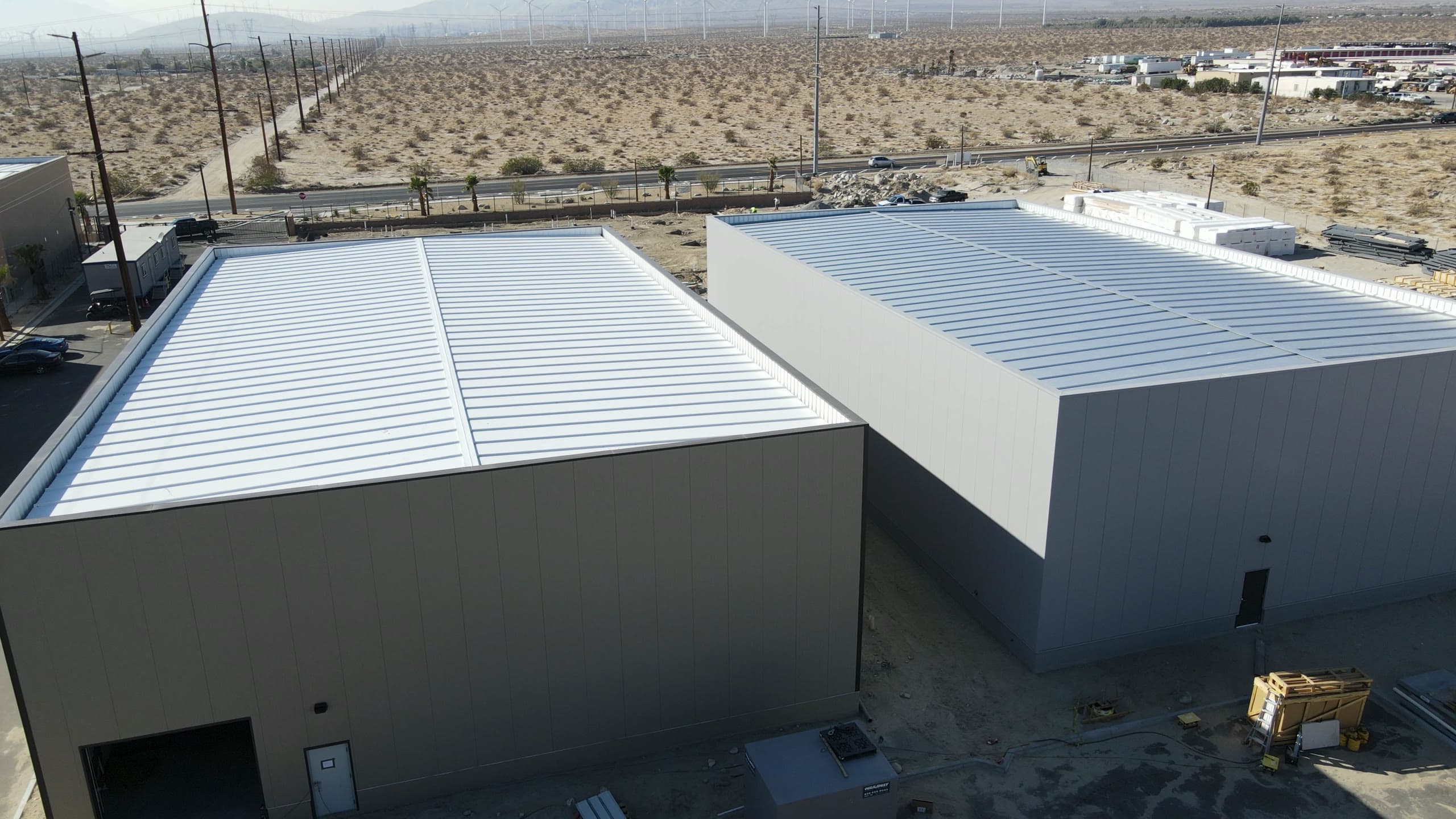

Two finished buildings in gray insulated metal panel with white standing-seam roofs, insulation bundles staged behind them and open desert across the road.
Structural Systems site footage

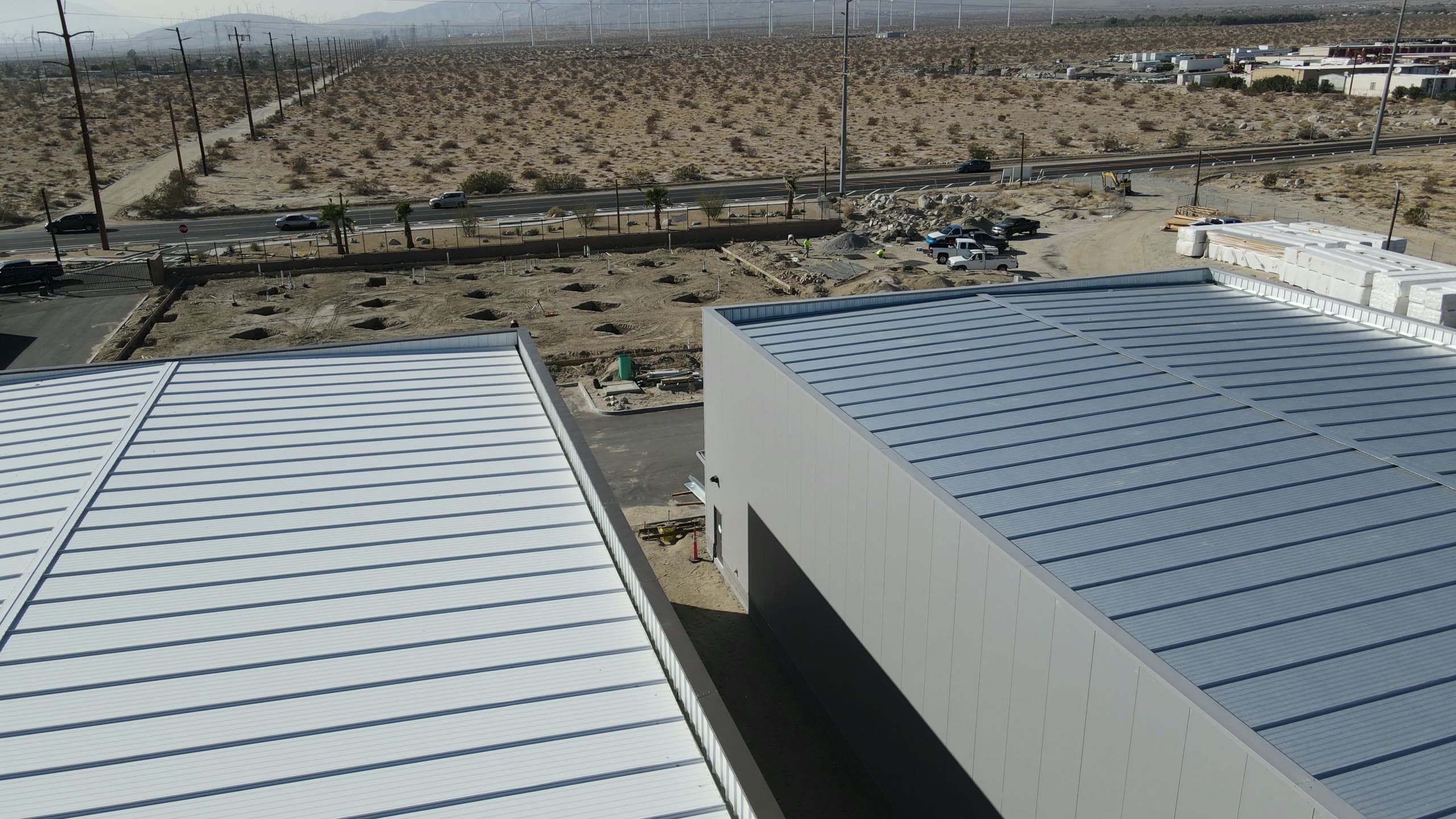

View across two finished roofs to a field of excavated footings, crew trucks along the drive, and wind turbines lining the valley floor beyond the highway.
Structural Systems site footage

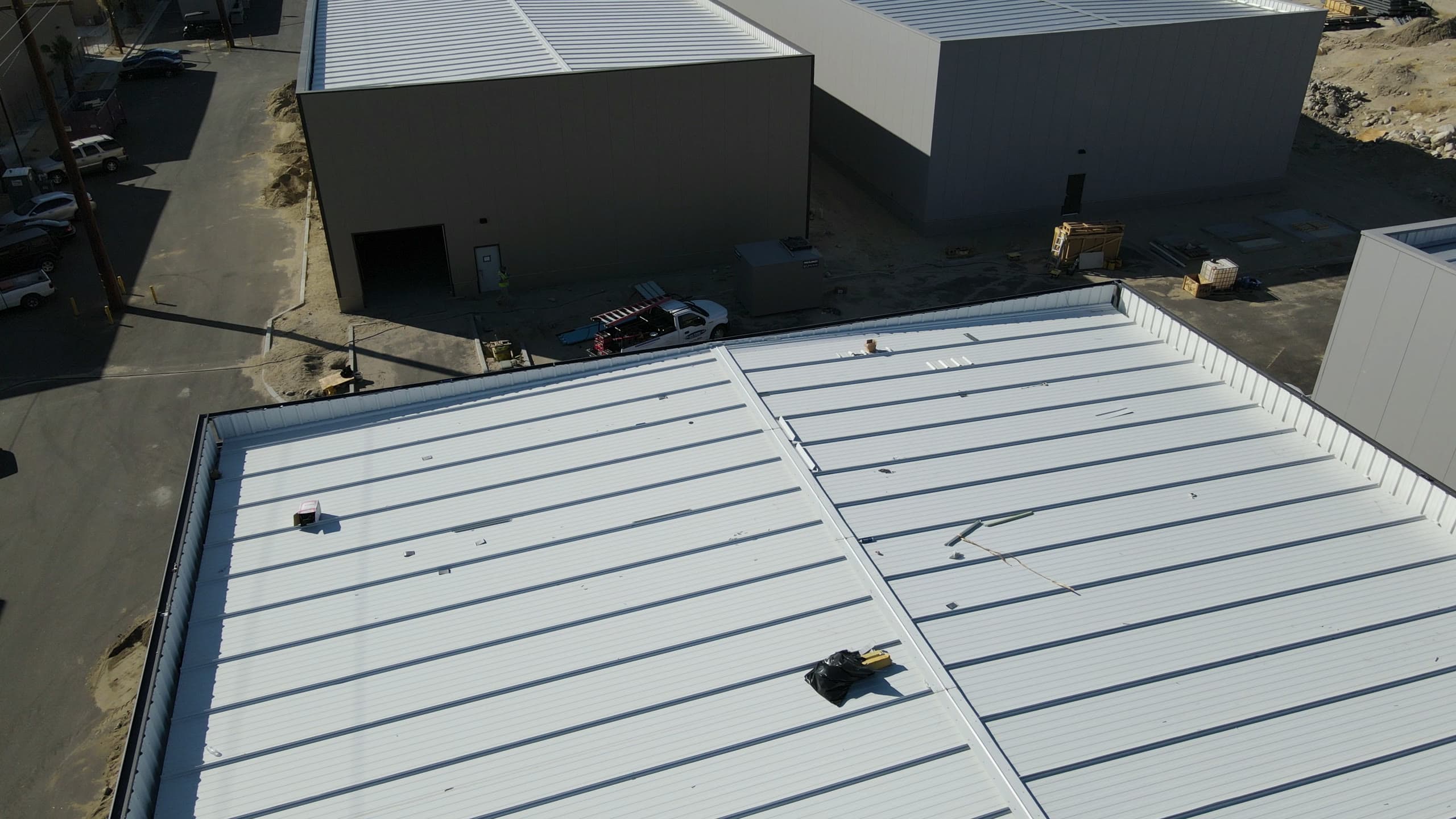

Service truck with a ladder rack parked between a finished white roof and the dark-paneled building next door, a worker in a high-visibility vest at its door and materials staged along the drive.
Structural Systems site footage

Joseph's own site footage from 2021, from the desert's light-industrial build-out.
